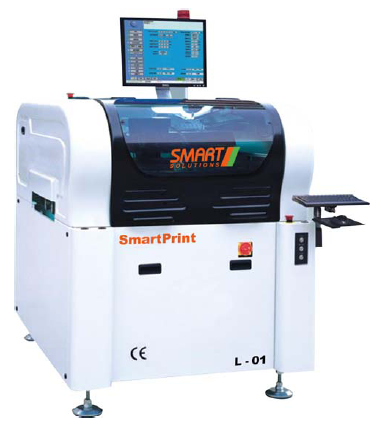

High resolution vision system

• CCD camera recognizes and aligns fiducial marks efficiently
• Positioning repeatability: 10 micron
• Printing accuracy: 20 micron
• Suitable for 0.3mm pitch IC and 01005 pad

Transport Width

• Closed loop controlled transport width which enables user to enter the desired PCB width in the software and the conveyor will automatically adjust itself

Positioning Repeatabality

• 10 micron

Printing Accuracy

• 20 micron

Stencil Cleaners

• Dry/ Wet /Vacuum, 3 cleaning modes can be combined freely.
  User-friendly cleaning settings automated stencil cleaning.

Closed loop controlled squeegee system

• The squeegee can compensate variations in PCB thickness.
• Integrated pressure sensor, pressure is closed-loop controlled.
• Floating squeegee
  Traverse printing mode specially designed for ultra large PCBs, two independent stepper motor driven squeegees

Mark Navigation

• Automated fiducial search makes new process set-up easier and faster, Fiducials are automatically searched within user-defined area. Fiducial coordinates and PCB stop location is automatically calculated.
  Stencil hole misalignment is well compensated.

2D Inspection (Optional)

• Short circuit, deviation and coverage rate of the solder paste is inspected to optimize the printing process. Stencil holes are also inspected to pervent insufficient solder, bad solder formation and other printing defects. (optional)
